Analogue to Digital Audio Converter LE

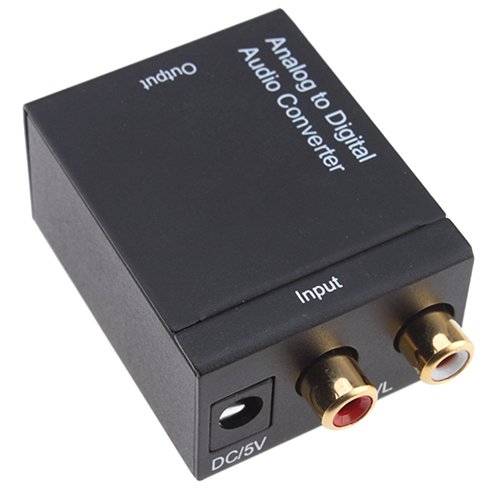

1.0 Introduction This Analog to Digital Audio Converter is designed for either home or professional audio switching. It convert analog stereo audio signal from R/L input to Coaxial and Toslink outputs simultaneously. The output digital audio signal is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. This Converter is small in size and quite easy to install.   1.1      Features This Analog to Digital Audio Converter has many features that enable it to perform in a superior manner. Among those features you will find: 1, Supports uncompressed 2-channel LPCM digital audio signal output. 2, Supports output sampling rate at 48 KHz. 3, Provides electromagnetic-noise-free transmission. 4, Easy to install and simple to operate.   2.0 SPECIFICATIONS Signal Inputs/Output Input Audio Stereo R/L Output Audio LPCM Connector Input audio connector 2XRCA（R/L） Output audio connector Toslink、1XRCA(Coaxial) Sampling rate 48 KHz Size(L-W-H) 50X40X<335MM> Weight (Net) <78g> Warranty Limited Warranty 1 Year Parts and Labor Environmental Operating Temperature <0 ℃> to <70℃> Operating Humidity 10% to 85 % RH (no condensation) Storage Temperature <-10℃> to <80℃> Storage Humidity 5% to 90 % RH (no condensation) Power Requirement External Power Supply 5V DC@<1A> Power Consumption 0.5 watts (max)       3.0 PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: 1).Main unit (Analog to Digital Audio Converter). 2).5V/DC POWER SUPPLY. 3) USER’s Manual.
