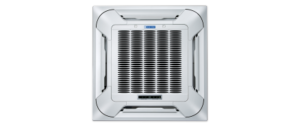

DAIKIN 1.50 TR CASSETTE FCVF50ARV16 4 STAR

Description New Round Flow Cassette (Cooling Only) Model Indoor unit FCMF50ARV16 FCMF71ARV16 FCMF90ARV16 FCMF100ARV16 Outdoor unit RZMF50BRV16 RZMF71BRV16 RZMF90BRV16 RZMF100BRV16 Remote Wireless Optional BRC4M150W16 Signal Receiver Unit -Model Number BRC7M632F-6 Wired Optional BRC1E63 Panel Code Standard Without Sensing BYCQ125EAF6 Power supply 230V/50Hz/1ph 230V/50Hz/1ph 230V/50Hz/1ph 230V/50Hz/1ph Cooling capacity -Rated (min ~max) kW 5.0 (3.2 ~5.6) 7.1 (3.2 ~8.0) 9.0 (4.5 ~10.1) 10.0 (5.0 ~11.2) Power consumption Cooling-Rated kW 1.27 1.90 2.42 2.91 Annual Power Consumption kWh 744.87 1057.11 1365.2 1665.15 ISEER / Stars Wh/Wh 5.2 5.2 5.1 4.65 Indoor unit Colour Galvanized Steel Plate Airflow rate (H/HM/M/ML/L) m3/min 23 / 21 / 18.5 / 16 / 13.5 34.5 / 31 / 27.5 / 24 / 20 cfm 812/742/653/565/477 1218/1095/971/848/706 Sound level (H/HM/M/ML/L) dB(A) 37 / 34.5 / 32 / 29.5 / 27.5 45 / 41.5 / 38 / 35 / 32.5 Dimensions (HXWXD) Unit mm 256X840X840 298X840X840 Panel mm 50X950X950 Machine weight Unit kg 22 25 Panel kg 5.5 Colour Ivory White Outdoor unit Compressor Type Hermetically Sealed Swing Type Motor output kW 1.3 1.3 1.6 1.6 Refrigerant R32 Refrigerant charge kg 1.09 1.3 2.8 2.8 Sound level Cooling dB(A) 48 50 51 51 Dimensions (HXWXD) mm 595x845x300 595x845x300 990x940x320 990x940x320 Machine weight kg 36.5 40 57 57 Certified operation range °CDB 21 ~ 48 Piping connections Liquid (Flare) mm 9.52 Gas (Flare) mm 15.88 Drain mm Dia 26 (Hole) Max. interunit piping length m 30 30 50 50 Max. installation level difference m 20 20 30 30
